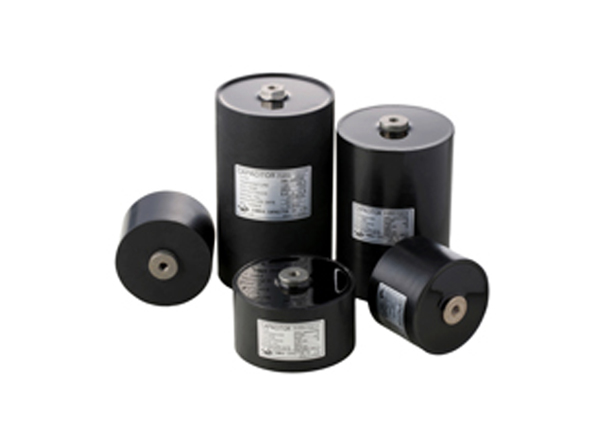

Introduction

Protection of thyristors
Protection of gate turn-off thyristor(G.T.O.).
Clamping (Secondary snubber)
Medium frequency tuning

Features

- High RMS current rating
- High impulse current rating
- Low self - inductance(ESL)
- Low series resistance(ESR)
- High reliability and life expectancy

Product scope

Capacitorance range	0.33㎌ to 5㎌
Rated DC voltage(U_N)	1000VDC to 3000VDC
Applicable Standard	IEC 61071-1, Opitional IEC 61881

Technical Data

Location	In door
Operating temperature	-40℃ to +85℃
Capacitance tolerance	±5%
Rated DC Voltage [Vndc]	1000VDC to 3000VDC
Peak voltage [Vpeak]	1600VDC to 4000VDC
Allowable over voltage [Vs]	2000VDC to 4600VDC(for 10 s/day)
Dielectric	Polypropylene
Stray inductance	≤ 20nH
Voltage test	Between terminals Vs. 100sec Between terminals and case 7kVac@ 60Hz (60, Type test)
Case	Plastic (UL 94, V0)
Filler	Resin, Dry (UL 94, V0)
Inernal protection device	Non
Lifetime expectancy	100,000 hrs (Rated voltage and ＜ 70℃ Hotspot)

Marking

- Type
- Temperature
- Voltage
- Capacitance
- LOT No.
- Manufacture date
- Applicable standard

Max Torque

M8 = 8.5Nm

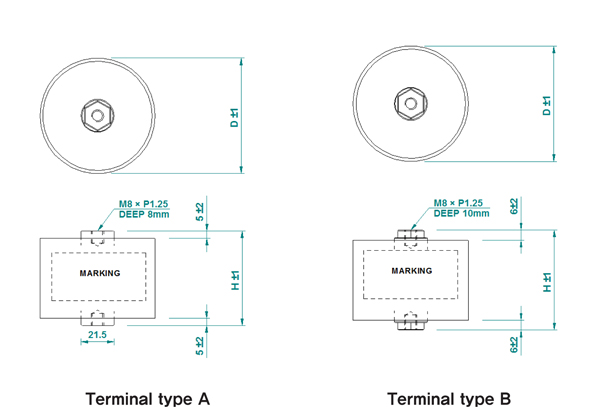

Dimensions

←좌우→로 드래그하세요!

Vndc	Vs	Vpeak	Type No.	C _N	ESR	I _max	I ²·t Max	R _th	Dimensions[mm]			Weight
[VDC]	[VS]	[Vpeak]	Type No.	[㎌]	[㏁]	[A _rms]	[A ²·S]	[℃/W]	[D]	H Terminal Type A	H Terminal Type B	[㎏]
1000	2000	1600	RMM-S1001S	1	2.3	20	3	10.5	75	51	53	0.26
			RMM-S10015AS	1.5	1.5	30	7	6.1	75	51	53	0.26
			RMM-S1002S	2	1.5	40	12.7	4.5	75	51	53	0.26
			RMM-S10025AS	2.5	0.89	60	20	3.7	75	51	53	0.26
			RMM-S1003S	3	0.85	60	28	3.2	75	51	53	0.26
			RMM-S10035AS	3.5	0.78	65	39	2.9	75	51	53	0.26
			RMM-S1004S	4	0.7	70	50	2.5	75	51	53	0.26
			RMM-S1005S	5	0.65	50	50	2.5	91	51	53	0.4
1750	2600	2000	RMM-S17547BS	0.47	4.04	12	1.4	28	75	61	63	0.32
			RMM-S1751S	1	2.17	21	5.7	10.9	75	61	63	0.32
			RMM-S17515AS	1.5	1.55	31	12.9	7.7	75	61	63	0.32
			RMM-S1752S	2	1.24	41	23	6.1	75	61	63	0.32
			RMM-S17525AS	2.5	1.05	51	36	4.5	75	61	63	0.32
			RMM-S1753S	3	0.92	62	50	3.9	75	61	63	0.32
			RMM-S17535AS	3.5	0.83	72	70	3.4	91	61	63	0.48
			RMM-S17539AS	3.9	0.78	80	85	3.1	91	61	63	0.48
2000	3500	2400	RMM-S20033BS	0.33	2.5	15	2	28	75	61	63	0.32
			RMM-S20050BS	0.50	2.5	19	5	11.2	75	61	63	0.32
			RMM-S2001S	1	1.4	38	15	6.2	75	61	63	0.32
			RMM-S20015AS	1.5	1.03	56	40	3.6	75	61	63	0.32
			RMM-S2002S	2	0.85	75	70	3.1	91	61	63	0.48
			RMM-S2003S	3	0.92	62	50	3.9	91	61	63	0.48
			RMM-S20035AS	3.5	0.83	72	70	3.4	91	61	63	0.48
			RMM-S2004S	4	0.78	80	85	3.1	91	61	63	0.48
1750	2600	2000	RMM-S17547BS	0.47	4.04	12	1.4	28	75	61	63	0.32
			RMM-S1751S	1	2.17	21	5.7	10.9	75	61	63	0.32
			RMM-S17515AS	1.5	1.55	31	12.9	7.7	75	61	63	0.32
			RMM-S1752S	2	1.24	41	23	6.1	75	61	63	0.32
			RMM-S17525AS	2.5	1.05	51	36	4.5	75	61	63	0.32
			RMM-S1753S	3	0.92	62	50	3.9	75	61	63	0.32
			RMM-S17535AS	3.5	0.83	72	70	3.4	91	61	63	0.48
			RMM-S17539AS	3.9	0.78	80	85	3.1	91	61	63	0.48
3000	4600	4000	RMM-S30016BS	0.16	6	15	0.8	28	75	61	63	0.32
			RMM-S30033BS	0.33	2.42	25	6.8	7.7	75	61	63	0.32
			RMM-S30047BS	0.47	1.79	35	13.8	5.2	91	61	63	0.48
			RMM-S30060BS	0.60	1.47	45	22	4.2	91	61	63	0.48
			RMM-S3015BS	1.25	1	65	50	3.3	91	61	63	0.48
			RMM-S30015AS	1.5	1.4	60	32	8.3	91	61	63	1.2
			RMM-S31007AS	1.7	1.3	70	40	7.4	91	141	143	1.2
			RMM-S3002S	2	1.1	80	56	6.3	91	141	143	1.2
