Introduction

DC Link capacitor can be universally used for the assembly of low inductance DC buffer circuits and DC filtering, smoothing.
They are Metallized polypropylene(SH-type) dielectric and Aluminum cylindrical case filled Dry resin(UL94, V0)

Features

- High RMS Current rating
- High impulse current rating
- Low self - inductance (ESL)
- Low series resistance (ESR)
- High reliability and life expectancy

Product scope

Capacitorance range 90㎌ to 7400㎌
Rated DC voltage(UN) 600VDC to 3000VDC
Applicable Standard IEC 61071-1, Opitional IEC 61881

Technical Data

Location In door
Operating temperature -40℃ to +85℃
Max over voltage 1.1 × UN : 30% of on-load duration
1.15 × UN : 30min
1.2 × UN : 5min
1.3 × UN : 1min
1.5 × UN : Below 30ms / 1,000 times on life time
Dielectric Metallized polypropylene, SH type
Dielectric dissipation factor(tang) < 2 × 10⁴
Voltage test Between terminal : 1.5 × UN during 10S (at 25ⓐ℃)
Betwwen terminals and case : 3kVac during 10s (at 60Hz, 25℃)
Case Aluminum can / Plastic cap
Filler Resin, Dry(UL 94,V0)
Internal protection device None
Lifetime expectancy 100,000 hrs (Rated voltage and < 70℃ Hotspot

Marking

- Type
- Temperature
- Voltage
- Capacitance
- LOT No.
- Manufacture date
- Applicable standard

Max Torque

- M6 = 4Nm
- M8 = 8Nm
- M12= 15Nm

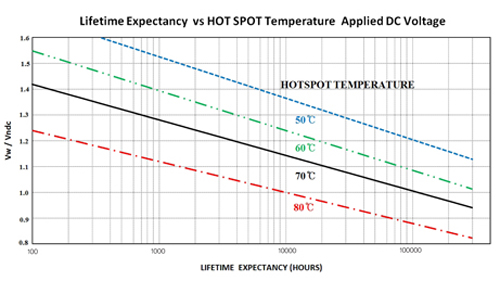

Exprcted Lifetime(Hours)

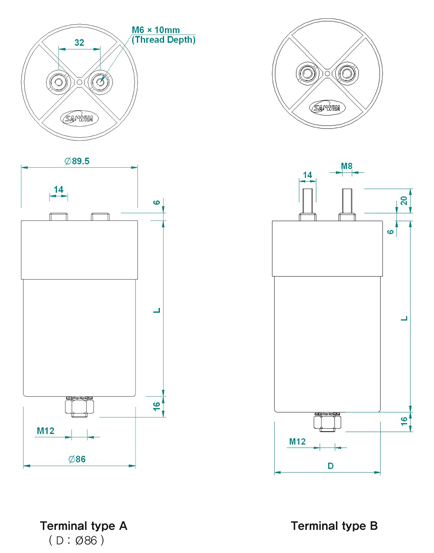

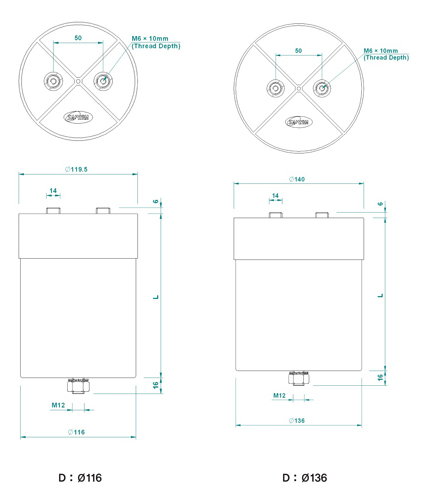

Dimensions

Dimensions

←좌우→로 드래그하세요!

Vndc VSurge Vripple Type No. CN ESR Rth Imax IPeak Isurge ESL Dimensions[mm] Weight
[VDC] [V] [V] [㎌] [㏁] [℃/W] [Arms] [kA] [kA] [nH] [D] [L] [㎏]
600 900 100 RMC-060460S 460 1.6 5.2 20 1.9 5.7 50 86 115 0.8
RMC-060780S 780 1.6 5.2 30 3.7 11.0 60 86 110 0.7
RMC-061000S 1000 1.8 4.2 35 3.7 11.0 55 86 135 0.8
RMC-061100S 1100 1.9 3.9 35 3.7 11.0 40 86 145 0.9
RMC-061430S 1400 2.3 3.1 35 3.7 11.0 60 86 180 1.2
RMC-061550S 1550 1.3 2.7 60 7.4 22.0 60 86 210 1.3
RMC-062240S 2240 1.1 2.3 40 6.7 20.0 40 116 165 1.9
RMC-062590S 2590 1.3 2.0 40 6.7 20.0 50 116 190 2.2
RMC-062830S 2830 0.66 1.8 60 13.4 40.0 50 116 215 2.4
RMC-064140S 4140 0.83 1.3 60 13.4 40.0 70 116 295 3.2
RMC-065190S 5190 0.96 1.1 60 13.4 40.0 70 116 345 3.5
RMC-065900S 5900 0.73 1.1 60 19.2 58.0 70 136 295 4.5
RMC-067400S 7400 0.84 0.9 60 19.2 58.0 70 136 345 5.3
700 1050 200 RMC-070350S 350 1.7 5.2 20 1.5 5.0 50 86 115 0.8
RMC-070580S 580 1.7 5.2 30 3.2 9.6 60 86 110 0.7
RMC-070750S 750 2.0 4.2 35 3.2 9.6 55 86 135 0.8
RMC-070820S 820 2.1 3.9 35 3.3 9.9 40 86 145 0.9
RMC-071070S 1070 2.5 3.1 35 3.2 9.6 60 86 180 1.2
RMC-071170S 1170 1.3 2.7 60 6.5 19.5 60 86 210 1.3
RMC-071680S 1680 1.2 2.3 40 5.9 17.7 40 116 165 1.9
RMC-071940S 1940 1.4 2.0 40 5.9 17.7 50 116 190 2.2
RMC-072120S 2120 0.69 1.8 60 11.7 35.1 50 116 215 2.4
RMC-073100S 3100 0.87 1.3 60 11.7 35.1 70 116 295 3.2
RMC-073890S 3890 1.0 1.1 60 11.8 35.0 70 116 345 3.5
RMC-074420S 4420 0.76 1.1 60 16.7 50.1 70 136 295 4.5
RMC-075540S 5540 0.88 0.9 60 16.7 50.1 70 136 345 5.3
900 1350 200 RMC-090270S 270 1.8 5.2 20 1.5 5.0 50 86 115 0.8
RMC-090450S 450 1.8 5.2 30 2.8 8.4 60 86 110 0.7
RMC-090580S 580 2.1 4.2 35 3.0 10.0 55 86 135 0.8
RMC-090630S 630 2.3 3.9 35 2.8 8.4 40 86 145 0.9
RMC-090830S 830 2.7 3.1 35 2.9 8.7 60 86 180 1.2
RMC-090900S 900 1.3 2.7 60 5.7 17.1 60 86 210 1.3
RMC-091290S 1290 1.3 2.3 40 5.2 15.6 40 116 165 1.9
RMC-091490S 1490 1.5 2.0 40 5.2 15.6 50 116 190 2.2
RMC-091620S 1620 0.73 1.8 60 10.3 30.9 50 116 215 2.4
RMC-092380S 2380 0.93 1.3 60 10.3 30.9 70 116 295 3.2
RMC-092980S 2980 1.1 1.1 60 10.3 30.9 70 116 345 3.5
RMC-093380S 3380 0.8 1.1 60 14.6 43.8 70 136 295 4.5
RMC-094240S 4240 0.93 0.9 60 14.6 43.8 70 136 345 5.3
1100 1650 250 RMC-110190S 190 3.2 5.2 20 1.5 5.0 50 86 115 0.7
RMC-110320S 320 1.8 5.2 30 2.4 7.2 60 86 110 0.7
RMC-110420S 420 2.0 4.2 40 2.5 15.0 40 86 135 0.8
RMC-110450S 450 2.3 3.9 40 2.4 14.8 40 86 145 0.9
RMC-110590S 590 2.8 3.1 40 2.4 14.8 60 86 180 1.2
RMC-110650S 650 1.3 2.7 60 4.8 14.4 60 86 210 1.3
RMC-110930S 930 1.3 2.3 40 4.4 13.2 40 116 165 1.9
RMC-11070S 1070 1.5 2.0 40 4.4 13.2 50 116 190 2.2
RMC-111170S 1170 0.74 1.8 60 8.7 26.1 50 116 215 2.4
RMC-111700S 1700 0.94 1.3 60 8.6 25.8 70 116 295 3.2
RMC-112150S 2150 1.1 1.1 60 8.7 26.1 70 116 345 3.5
RMC-112440S 2440 0.8 1.1 60 12.4 37.2 70 136 295 4.5
RMC-113060S 3060 0.93 0.9 60 12.4 37.2 70 136 345 5.3
1300 1950 300 RMC-130120S 120 3.9 5.2 20 1.0 3.0 50 86 115 0.7
RMC-130210S 210 1.8 5.2 30 2.0 6.0 60 86 110 0.7
RMC-130270S 270 2.5 4.2 40 2.0 10.0 55 86 135 0.8
RMC-130300S 300 2.6 3.9 40 2.0 10.0 40 86 145 0.9
RMC-130390S 390 3.2 3.1 40 2.0 10.0 60 86 180 1.2
RMC-130430S 430 1.5 2.7 60 4.0 12.0 60 86 210 1.3
RMC-130600S 600 1.6 2.3 40 3.5 10.5 40 116 165 1.9
RMC-130700S 700 1.8 2.0 40 3.5 10.5 50 116 190 2.2
RMC-130760S 760 0.82 1.8 60 7.0 21.0 50 116 215 2.4
RMC-131120S 1120 1.0 1.3 60 7.0 21.0 70 116 295 3.2
RMC-131400S 1400 1.2 1.1 60 7.07 21.0 70 116 345 3.5
RMC-131600S 1600 0.88 1.1 60 10.0 30.0 70 136 295 4.5
RMC-132010S 2010 1.0 0.9 60 10.0 30.3 70 136 345 5.3
1500 2250 300 RMC-150100S 100 4.2 5.2 20 1.0 3.0 50 86 115 0.7
RMC-150160S 160 2.3 5.2 30 1.7 5.1 60 86 110 0.7
RMC-150210S 210 2.8 4.2 40 2.0 10.0 55 86 135 0.8
RMC-150230S 230 2.9 3.9 40 2.0 10.0 40 86 145 0.9
RMC-150300S 300 3.6 3.1 40 2.0 10.0 60 86 180 1.2
RMC-150330S 330 1.7 2.7 60 3.4 10.2 60 86 210 1.3
RMC-150470S 470 1.7 2.3 40 3.3 10.0 40 116 165 1.9
RMC-150540S 540 2.0 2.0 40 3.3 10.0 50 116 190 2.2
RMC-150590S 590 0.88 1.8 60 6.1 18.3 50 116 215 2.4
RMC-150860S 860 1.1 1.3 60 6.1 18.3 70 116 295 3.2
RMC-151080S 1080 1.3 1.1 60 6.1 18.3 70 116 345 3.5
RMC-151240S 1240 0.93 1.1 60 8.7 26.1 70 136 295 4.5
RMC-151550S 1550 1.1 0.9 60 8.7 26.1 70 136 345 5.3
1800 2700 400 RMC-180120S 120 2.6 5.2 30 1.5 5.0 60 86 110 0.7
RMC-180150S 150 3.1 4.2 40 1.5 5.0 55 86 135 0.8
RMC-180160S 160 3.3 3.9 40 1.5 5.0 40 86 145 0.9
RMC-180220S 220 4.0 3.1 40 1.5 5.0 60 86 180 1.2
RMC-180240S 240 1.8 2.7 60 3.0 9.0 60 86 210 1.3
RMC-180340S 340 2.0 2.3 40 2.6 7.8 40 116 165 1.9
RMC-180390S 390 2.2 2.0 40 2.6 7.8 5.0 116 190 2.2
RMC-180420S 420 0.95 1.8 60 5.2 15.6 50 116 215 2.4
RMC-180620S 620 1.2 1.3 60 5.3 16.0 70 116 295 3.2
RMC-180780S 780 1.4 1.1 60 5.3 16.0 70 116 345 3.5
RMC-180990S 900 1.0 1.1 60 7.6 22.8 70 136 295 4.5
RMC-181120S 1120 1.2 0.9 60 7.6 22.8 70 136 345 5.3
