Introduction

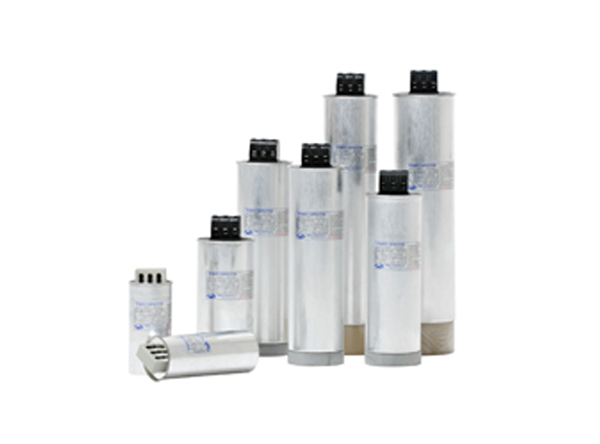

AC-Filter capacitor are constructed with self-healing metallized polypropylene, delta connected internally for3-phase operation and packaged in a cylindrical metal case and safety protected with an internal pressure interrupterthat disengages all 3 phases in the event of capacitor overload or end of life
Features
- High RMS current rating
- High capacitance values
- Quick connection point
- safe pressure interrupter
- High reliability and life expectancy
- High capacitance values
- Quick connection point
- safe pressure interrupter
- High reliability and life expectancy
Product scope
| Capacitorance range | 4.7㎌ × 3 to 100㎌ × 3 |
| Rated DC voltage(UN) | 450Vrms to 1000Vrms |
| Applicable Standard | IEC 61071-1, Opitional IEC 61881, IEC 60831 |
Technical Data
| Location | In door |
| Operating temperature | -40℃ to +85℃ |
| Capacitance tolerance | ±5%, ±10% |
| Max over voltage | 1.1 × UN : 30% of on-load duration |
| 1.15 × UN : 30min | |
| 1.2 × UN : 5min | |
| 1.3 × UN : 1min | |
| 1.5 × UN : Below 30ms / 1,000 times on life time | |
| Dielectric | Metallized polypropylene, SH type |
| Dielectric dissipation factor(tang) | < 2 × 10-4 |
| Voltage test | Between terminal : 1.5 × UN during 10s (at 25℃) |
| Betwwen terminals and case : 3kVac during 10s (at 60Hz, 25℃) | |
| Case | Aluminum can /Screw down terminals |
| Filler | Capacitor Oil, Non-PCB |
| Internal protection device | Overpressure interrupter device |
| Lifetime expectancy | 100,000 hrs (Rated voltage and < 70℃ Hotspot |
Marking
- Type
- Temperature
- Voltage
- Capacitance
- LOT No.
- Manufacture date
- Applicable standard
Max Torque
- M6 = 4Nm
- M8 = 8Nm
- M12= 15Nm
- Screw down Terminal =3Nm

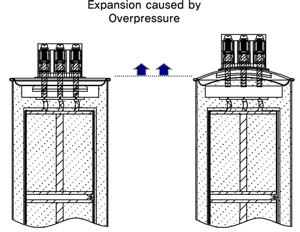

Overpressure Interrupter device

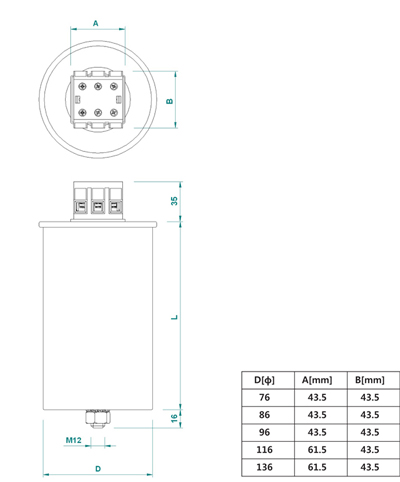

Dimensions
←좌우→로 드래그하세요!
| Vrms | V AC | V surge | Type No. | CN | ESR | Rth | Imax | IPeak | Isurge | ESL | Dimensions[mm] | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [Vrms] | [VAC] | [V] | [㎌] | [㏁] | [℃/W] | [A rms] | [kA] | [kA] | [nH] | [D] | [L] | [㎏] | |
| 450 | 640 | 1350 | QMC-A45033T | 33×3 | 1.2×3 | 4.7 | 43×3 | 0.9 | 2.7 | 90 | 76 | 165 | 0.9 |
| QMC-A45040T | 40×3 | 1.2×3 | 4.7 | 43×3 | 1.1 | 3.3 | 130 | 76 | 165 | 0.9 | |||
| QMC-A45046T | 46×3 | 1.1×3 | 4.1 | 43×3 | 1.3 | 3.9 | 110 | 86 | 170 | 1.2 | |||
| QMC-A45051T | 50×3 | 1.1×3 | 4.1 | 43×3 | 1.4 | 4.2 | 140 | 86 | 170 | 1.2 | |||
| QMC-A45057T | 57×3 | 0.8×3 | 3.7 | 43×3 | 1.6 | 4.8 | 120 | 96 | 165 | 1.3 | |||
| QMC-A45068T | 68×3 | 0.8×3 | 3.7 | 43×3 | 2.0 | 6.0 | 100 | 96 | 165 | 1.3 | |||
| QMC-A45080T | 80×3 | 0.6×3 | 3.0 | 55×3 | 2.5 | 7.5 | 100 | 116 | 165 | 2.4 | |||
| QMC-A45100T | 100×3 | 0.4×3 | 3.0 | 55×3 | 3.0 | 9.0 | 100 | 116 | 165 | 2.6 | |||
| QMC-A45135T | 135×3 | 0.6×3 | 2.1 | 80×3 | 2.5 | 7.5 | 120 | 116 | 230 | 3.0 | |||
| QMC-A45200T | 200×3 | 0.6×3 | 1.8 | 80×3 | 3.5 | 10.5 | 125 | 136 | 230 | 3.9 | |||
| 530 | 750 | 1600 | QMC-A53023T | 23×3 | 1.2×3 | 4.7 | 43×3 | 0.8 | 2.5 | 100 | 76 | 165 | 0.9 |
| QMC-A53030T | 30×3 | 1.2×3 | 4.1 | 43×3 | 1.1 | 3.3 | 120 | 86 | 170 | 1.2 | |||
| QMC-A53038T | 38×3 | 0.8×3 | 3.7 | 43×3 | 1.4 | 4.2 | 120 | 96 | 165 | 1.3 | |||
| QMC-A53100T | 100×3 | 0.6×3 | 2.1 | 80×3 | 2.2 | 6.6 | 120 | 116 | 230 | 3.0 | |||
| 600 | 850 | 1820 | QMC-A60014T | 14×3 | 1.3×3 | 4.7 | 43×3 | 0.6 | 1.8 | 130 | 76 | 165 | 0.9 |
| QMC-A60019T | 19×3 | 1.2×3 | 4.7 | 43×3 | 0.7 | 2.2 | 100 | 76 | 165 | 0.9 | |||
| QMC-A60025T | 25×3 | 1.1×3 | 4.1 | 43×3 | 1.0 | 3.0 | 100 | 86 | 170 | 1.2 | |||
| QMC-A60038T | 35×3 | 0.8×3 | 3.7 | 43×3 | 1.5 | 4.5 | 100 | 96 | 165 | 1.3 | |||
| QMC-A60050T | 50×3 | 0.7×3 | 3.0 | 55×3 | 2.0 | 6.0 | 100 | 116 | 165 | 2.6 | |||
| 760 | 1080 | 2300 | QMC-A76010T | 10×3 | 1.2×3 | 4.7 | 43×3 | 1.1 | 3.3 | 120 | 76 | 165 | 0.9 |
| QMC-A676017T | 17×3 | 0.7×3 | 3.7 | 43×3 | 1.9 | 5.7 | 130 | 96 | 165 | 1.3 | |||
| QMC-A76027T | 27×3 | 0.4×3 | 3.0 | 55×3 | 3.1 | 9.3 | 120 | 116 | 165 | 2.4 | |||
| QMC-A76049T | 49×3 | 0.6×3 | 2.1 | 55×3 | 3.2 | 9.6 | 120 | 116 | 230 | 3.0 | |||
| QMC-A76055T | 55×3 | 0.4×3 | 2.1 | 55×3 | 5.0 | 15 | 130 | 136 | 230 | 3.9 | |||
| 850 | 1200 | 2580/td> | QMC-A85008T | 8×3 | 1.3×3 | 4.9 | 43×3 | 1.0 | 3.0 | 120 | 76 | 165 | 0.9 |
| QMC-A85012T | 12×3 | 1.1×3 | 4.3 | 43×3 | 1.5 | 4.5 | 120 | 86 | 170 | 1.2 | |||
| QMC-A85025T | 25×3 | 0.4×3 | 3.2 | 55×3 | 3.2 | 9.6 | 130 | 116 | 165 | 2.6 | |||
| QMC-A85041T | 41×3 | 0.6×3 | 2.1 | 55×3 | 3.0 | 9.0 | 120 | 116 | 230 | 3.0 | |||
| QMC-A85055T | 55×3 | 0.5×3 | 1.8 | 80×3 | 3.5 | 11.0 | 130 | 136 | 230 | 3.9 | |||
| 1000 | 1400 | 3000 | QMC-A10011T | 11×3 | 0.5×3 | 3.0 | 55×3 | 2.0 | 6.0 | 130 | 116 | 165 | 2.4 |
| QMC-A10033T | 33×3 | 0.6×3 | 1.8 | 55×3 | 3.0 | 9.0 | 120 | 136 | 230 | 3.9 | |||
| 1200 | 1700 | 3600 | QMC-A12012T | 12×3 | 1.0×3 | 2.6 | 55×3 | 1.3 | 3.9 | 140 | 96 | 230 | 2.7 |
| QMC-A12022T | 22×3 | 0.6×3 | 1.8 | 55×3 | 2.3 | 6.9 | 120 | 136 | 230 | 3.9 | |||
