| Applications |
|---|
| Automotive |
| Type |
|---|
| Standard |

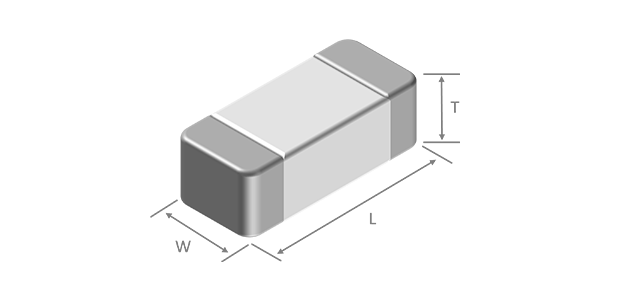

| Size L*W (mm/inch) | 1608/0603 |
|---|---|
| L Size (mm) | 1.60 ± 0.15 |
| W Size (mm) | 0.80 ± 0.10 |
| T Size (mm) | 0.80 ± 0.10 |
| Capacitance | 120㎊ |
|---|---|
| Tolerance | ±5% |
| Temperature Characteristic | C0G (-55 to 125℃) |
| Temperature Coefficient | ±30ppm/℃ |
| Rated Voltage | 50 |
| Packaging Quantity | 4,000 |
|---|---|
| Packaging Type | 7 Inch Reel Paper Taping |
