| Applications |
|---|
| General |
| Type |
|---|
| Standard |

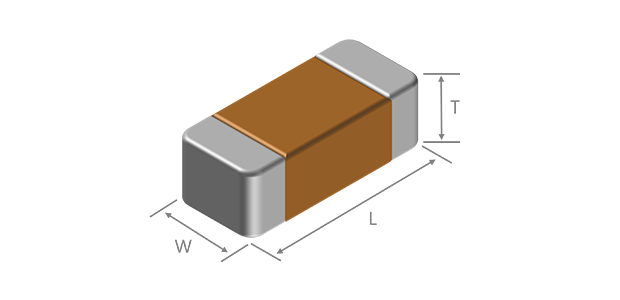

| Size L*W (mm/inch) | 3216/1206 |
|---|---|
| L Size (mm) | 3.20±0.30 |
| W Size (mm) | 1.60±0.20 |
| T Size (mm) | 1.60±0.20 |
| Capacitance | 22㎌ |
|---|---|
| Tolerance | ±10% |
| Temperature Characteristic | X5R (-55 to 85℃) |
| Temperature Coefficient | ±15% |
| Rated Voltage | 16 |
| Packaging Quantity | 2,000 |
|---|---|
| Packaging Type | 7 Inch Reel Embossed Taping |
